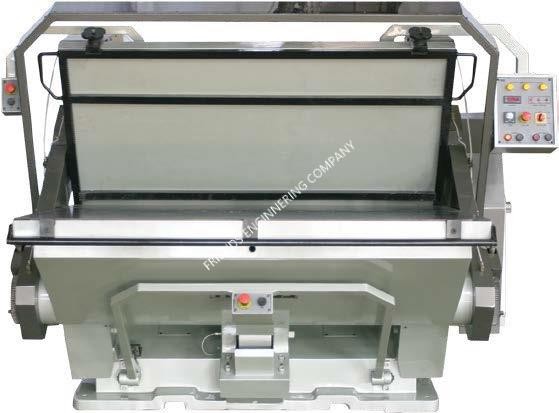

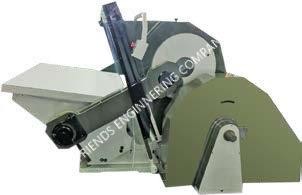

Platen Punching Machine

Platen Punching Machine

We bring about our top magnificence Friends Heavy-duty Platen Punching Machine this is Manufactured with Electro-Magnetic capture and Brake for easy operations. synthetic using the first-rate notable Tempered Materials, En Graded components, this Platen Punching Machine is a success and designed for Die-Punching, Creasing, slicing and Embossing project on numerous products along with Paper, Card Board, Corrugated Board, Fiber Board, Vinyl, Foam, Rubber, leather-based-based, Masonite, Cork Sheets, Glued containers, advertising and marketing cut out, Jigsaw Puzzles, Labels and plenty more.

The All in one Machine to provide the best output as desired by the Customer with according to die used in the Machine. All below mentioned Features enable us to produce 100% Efficient, Accurate results. In addition to this, the Platen Punching Machine that we offer complies with the set of various business standards. Our valued customers can avail the Platen Die Punching Machine by means of us in various sizes as in step with their wishes

Features

“Friends” complete significant Duty Platen Punching Machine is intended for Die Cutting, Creasing & Embossing on Paper, Card Board, cardboard, Leather, Plastic and P.V.C. etc.

  • Totally standardized (i.e. all components square measure inter-changeable)
  • All shafts measure from linear unit Grade steel and pins measure grounded & bushes from Phosphorus Bronze Alloy.
  • All bearings measure of SKF/NBC/NACHI solely.
  • Fail-safe combination clutch brakes system with adjustable system (up to microns).
  • The main driving shaft is supplied with 2 sets of double coiled self-lubricated foreign polyamide/steel pinion.
  • Main electrical panel (operation and control) square measure equipped with detachable Socket System with international standardized parts i.e. Siemens/L&T/Schneider (France) etc.
  • Self diagnostic system software system with visual indications.
  • Main regulator is fast with check-nut system.
  • Fully Automatic Centralized Lubrication System is provided.
  • Quick and straightforward adjustment of impressions is formed through 2 worm gears and eccentric bushes within the cam for left-right and up-down of platen to form the four corners equal.
  • Machine has quite silent running and outlook is great with highest quality paint and powder coated fitting.

“Friends” quickest Platen opening of 87” to produce press Operator more Time to feed delivering larger productivity.

All features that create the “Friends” Platen Punching Machine simplest, reliable and maintenance free

  • Technical Specification

ModelFriends - 28Friends - 35Friends - 40Friends - 43Friends - 46Friends - 54Friends - 57Friends - 66Friends - 68Friends - 76Friends - 85Friends - 95
Platen Size (in)22×2825×3528×4032×4336×4640×5443x5746×6648x6856×7655×8555×95
Inside Chase (in)20×2622×3225×3729×4033×4337×5140x5443×6345x6553×7352×8252×92
Platen Size (cm)56×7163×8871×10181×10991×116101.6×137109x145116×167122x173142×193140×216140×241
Inside Chase (cm)51×6656×8164×9473×101.583×10994×130102x137109×160114x165134×185132×208132×233
H.P. Reqd.33557.57.5101015151520
Impr/hr1800170015001400130011001000950900800750700
Wt. approx. (Tons)2.753.754.254.755.56.57.59.510.513.515.518
Area reqd. (cm)188×150×157188×167×147198×188×152196×188×160233×198×167228x208x180235×223×195241×241×203245x245x207267×267×218267×292×218267×317×278
Area reqd. (in)
74×59×6274×66×58
78×74×60
77×74×63
92×78×66
90×82×71
93×88×77
95×95×80
97x102x88
105×105×86
105×115×86
105×125×110
