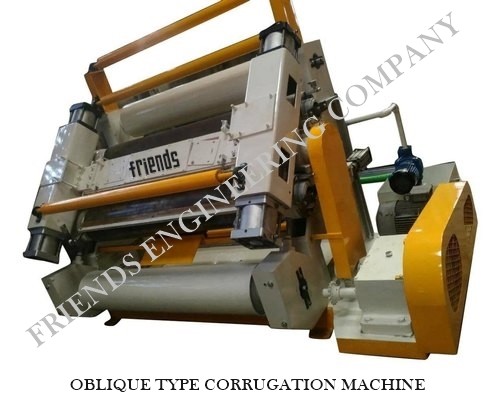

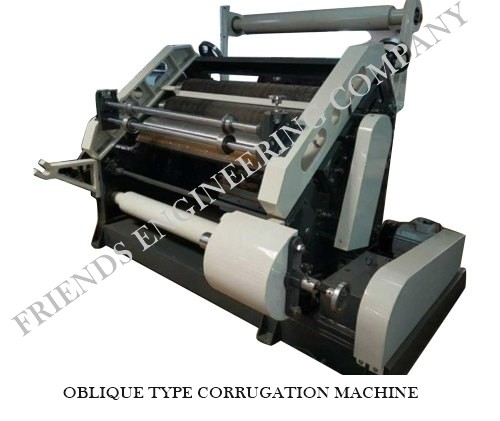

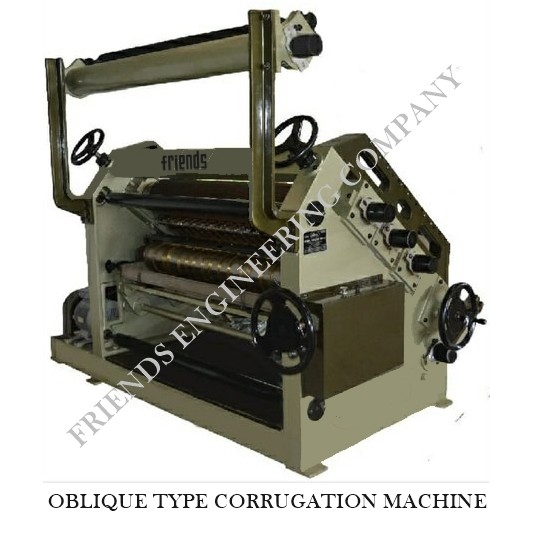

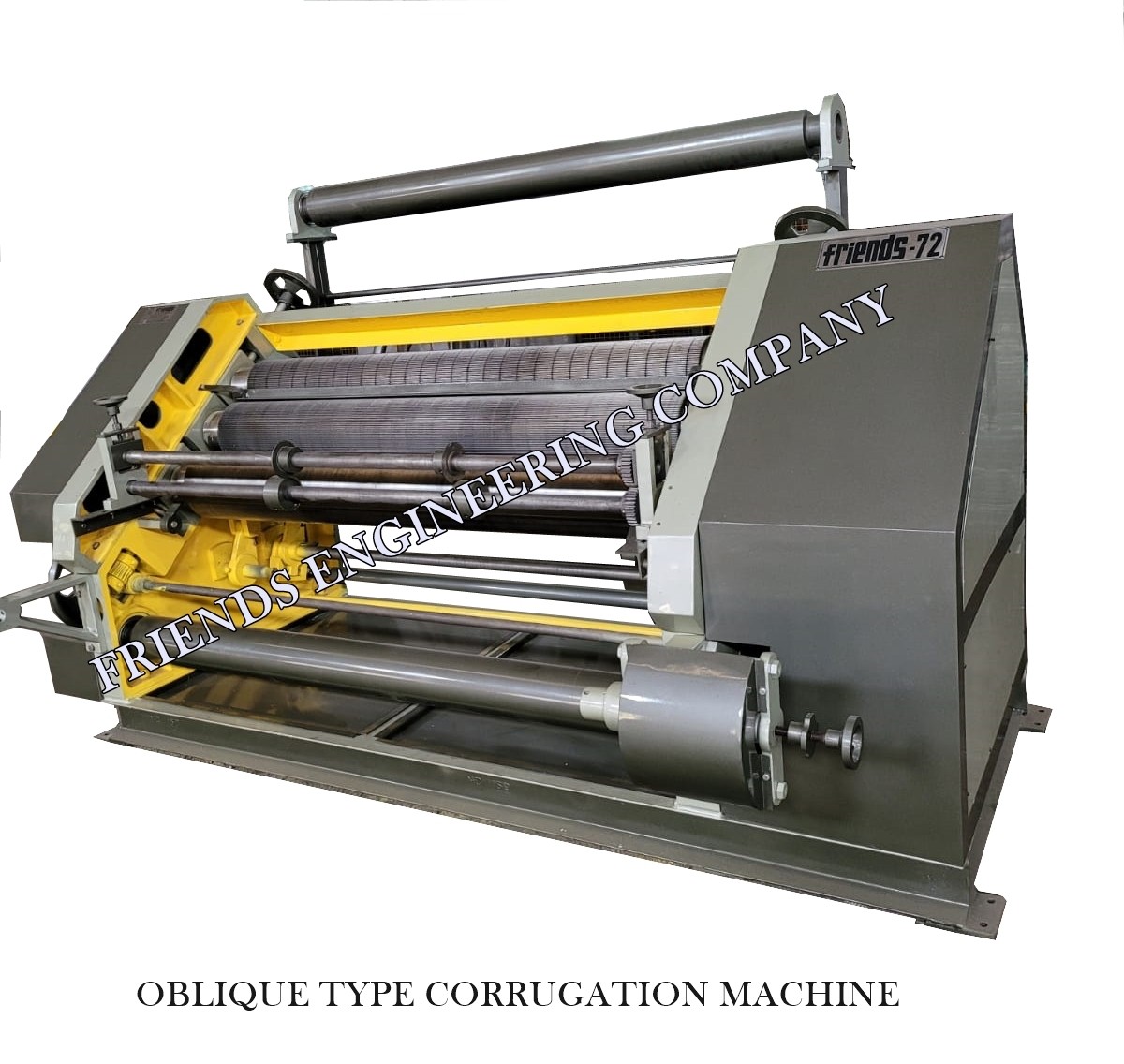

Oblique Type Corrugation Machine

Oblique Type Corrugation Machine

We're counted amongst the arising manufacturers and exporters of oblique type corrugation machine. The Oblique type corrugation machine is designed with huge motorized roll stand that has a capacity of lifting 2-ton roll at a time. Owing to the flute rollers that are mounted on bearings, it provides smooth functionality and dependable performance. This Oblique type corrugation machine is extensively used for converting paper into 2 ply corrugated roll.

Features


  • Construction and operation Enabled with rollers are bearing mounted
  • delivered with pre-heaters asunder from the three regular heaters tode-moisturize the liner
  • Equipped with binary shaft motorized tone lading roll stand & bull
  • Construction and Operation & bull The flute breakers are mounted on bearing for smooth handling & longer life
  • The flute breakers are made of special amalgamation sword & bull
  • The main bearing are waxed with high temperature grease
  • Enabled with gum Rollers that are hard chromed for better performance & life
  • Two pre-heaters are handed tode-moisturize the paper
  • The variable speed motor is recommended for better quality and frugality in destruction at an fresh cost
  • Capacity to lift up to 1 ton roll
  • Variable drive motor is standard with this model
  • Handed with' Goliath' type motorized Hydraulic roll stage.
  • Technical Specification

Size (Inches)

Heating Load (Approx.)

 in KW

Power (H.P)

42”

21

3

52”

27

5

62”

30

5

72”

36

7.5
