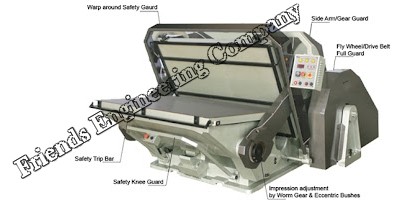

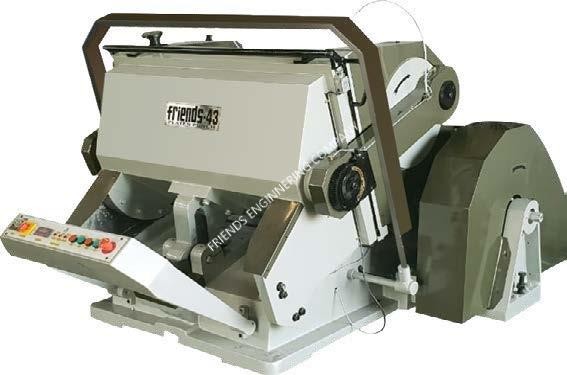

Heavy Duty Die Punching Machine

Heavy Duty Die Punching Machine

We yield our Best Quality durable and efficient Friends Heavy Duty Die Punching Machine, equipped with Electro-Magnetic Clutch and Brake for simple operations. Designed and manufactured utilizing the best quality raw materials, En Graded Components, this Heavy Duty Die Punching Machine is generous and constructed for Die-Cutting, Creasing, Punching and Embossing Job on several Products that is Paper, Card Board, Corrugated Board, Fiber Board, Vinyl, Foam, Rubber, Leather, Masonite, Cork Sheets, Glued Boxes, Advertising Cut out, Jigsaw Puzzles, Labels and much more.


The beat one Machine to produce the simplest output as desired by the client within line with die affixed in the Machine. All below mentioned Features enable to Produce Best machine in its class. Additionally to the present, the Heavy Duty Die Punching Machine that we provide complies with the set of varied business standards. Our valued customers will avail the Platen Die Punching Machine by suggesting that people in varied sizes as in step with their desires

Features

“Friends” whole significant Duty Platen Punching Machine is meant for Die Cutting, Creasing & Embossing on Paper, Card Board, corrugated cardboard, Leather, Plastic and P.V.C., etc.
  • Totally standardized (i.e. all components are interchangeable)
  •  All shafts are from linear unit Grade steel and pins are grounded & bushes from Phosphorus Bronze Alloy.
  • All bearings are of SKF/NBC/NACHI solely.
  • Fail-safe combination clutch brakes machine with adjustable machine (up to microns).
  • The major driving shaft is ready with units of double-helical self-lubricated imported polyamide/metal pinion.
  • Main electric powered panels (operation and manage) are prepared with Detachable Socket System with international standardized additives i.e. Siemens/L&T/Schneider (France) etc.
  • Self-diagnostic gadget software with visual indications
  • Main flywheel is locked with check-nut machine.
  • Fully Automatic Centralized Lubrication System is supplied.
  • Quick and easy adjustment of impressions is made through worm gears and eccentric bushes within the cam for left-proper and up-down of platen to make the 4 corners equal.
  • Machine is having quite silent walking and outlook is wonderful with nice paint and powder lined fitting.
  • “Friends” Fastest Platen commencing 87” to provide press Operator Increased Time to feed turning in extra productivity.
  • All functions that make the “Friends” Platen Punching Machine most simple, reliable and upkeep unfastened.
  • Technical Specification

ModelFriends - 28Friends - 35Friends - 40Friends - 43Friends - 46Friends - 54Friends - 57Friends - 66Friends - 68Friends - 76Friends - 85Friends - 95
Platen Size (in)22×2825×3528×4032×4336×4640×5443x5746×6648x6856×7655×8555×95
Inside Chase (in)20×2622×3225×3729×4033×4337×5140x5443×6345x6553×7352×8252×92
Platen Size (cm)56×7163×8871×10181×10991×116101.6×137109x145116×167122x173142×193140×216140×241
Inside Chase (cm)51×6656×8164×9473×101.583×10994×130102x137109×160114x165134×185132×208132×233
H.P. Reqd.33557.57.5101015151520
Impr/hr1800170015001400130011001000950900800750700
Wt. approx. (Tons)2.753.754.254.755.56.57.59.510.513.515.518
Area reqd. (cm)188×150×157188×167×147198×188×152196×188×160233×198×167228x208x180235×223×195241×241×203245x245x207267×267×218267×292×218267×317×278
Area reqd. (in)
74×59×6274×66×58
78×74×60
77×74×63
92×78×66
90×82×71
93×88×77
95×95×80
97x102x88
105×105×86
105×115×86
105×125×110
